Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: LVHUAN
  • Model Number: LHBMG10-1000
  • Type: wood gas power plant
  • Name: biomass gasification power generation wood gas power plant 1mw
  • Alternator: Siemens, stamford, Marathon, etc
  • Genset type: Open, Silent, Mobile, CHP
  • pressure: 5-20kpa for biomass generator price
  • intake mode: natural intake
  • sparking mode: sparking plug
  • Fuel: biomass gas/wood chips/straw for biomass gasifier power plant
  • overhaul time: >30000h
  • Brand: Lvhuan
  • Certificate: ISO CE

Packaging & Delivery

Packaging Details packed with plywood box or as your requirment for Wood waste biomass gasification power generation wood gas power plant 1mw

Wood waste biomass gasification power generation wood gas power plant 1mw



Our successful case in the Republic of Congo



https://youtu.be/RBnXZTu2Ul0



Product Description

 1. Specifications

  • Power range: 10kw-5mw wood gas power plant, single or parallel running

  • With CE and ISO

  • Long continuous running hours, 8000 hours per year

  • Manufacturer, OEM provided

  • Stable engine, famous alternator, PLC control panel

  • Multi-option of engine, alternator and control system and cooling system

  • Stable engine, famous alternator, PLC control panel

  • Multi-option of engine, alternator and control system and cooling system

2. Biomass power plant description

  • The basic principle of biomass gasification system is to convert Agriculture and forestry products and wood processing remains (including rick husks, wood powder, branches, offcuts, corn straws, rice straws, wheat straws, cotton straws, fruit shells, coconut shells, palm shells, bagasse, corncobs and etc.) into combustible gas . It is then used as fuel in gas engine to generate electricity. Biomass gasification successfully conquers the disadvantages of biomass, such as low flammability and wide diversity. Biomass gasification system is characteristic of small land requirement and environment friendly. It’s one of the most effective way of biomass utilization.

3.  Core spare parts

  • Ignition system:  American ALTRONIC, including: magneto and high-tension coil.

  • Controller: Comap, Deepsea, Smartgen

  • Automatic control system: Automatic control plate and ATS fully automatic switch between generator and national grid.

  • Woodward technology: adopted Woodward lean burning technology, Woodward or ComAp speed adjusting system

  • Starting system: DC24V electric motor.

  • Sparking plug: STITT

  • MixerIMPCO

4.   Envioronment requirements for wood gas power plant
  • Ambient temperature between -40℃~40℃;

  • Relative humidity less than 95%(35℃);

  • Site elevation not higher than 2500m;

  • For outdoor installation, simple rain shelter is required.

5.  Gas requirements for wood gas power plant



6.  Main technical parameters of AC Three Phase Output Type 100kw producer gas generator biomass generator

Technical parameters
Parameter of biomass generator/wood gas power plant
Model Number (Engine Type)LHBMG10-1000
Brand NameLVHUAN
Prime Power/Standby Power8-1000KW/10-1200KW
Rated Speed1500/1800RMP, 1000/1200RPM
Rated Frequency50/60Hz
Rated Voltage400V/230V
PhaseAC 3-Phase, 4 wire
Voltage Stability≤±2%
Voltage transient≤±10%
Voltage Stable time≤1s
Heat consumption≤9.8mj/kw.h
Lubricant Consumption≤1.0g/kw.h
Engine Capacity2.24L-71.4 L
Cylinder Number12-V
Cylinder Bore190mm
Stroke210mm
Starting SystemDC 24V electric motor
Cooling methodwater cooler
Lubricant methodPassive and flying lubricant
Isolation classH
ProtectionIP23
AlternatorSiemens, Engga, Marathon, Stamford etc.
Power Factor0.8 lagging
Exciting methodbrushless
Colouryour choice
CertificatesISO 9001:2008, CE
Warranty1 year
TypeOpen
Control SystemAutomatic alarm system
Size6200x2100x2800mm(without canopy)
Weight12500kg
Product Pictures

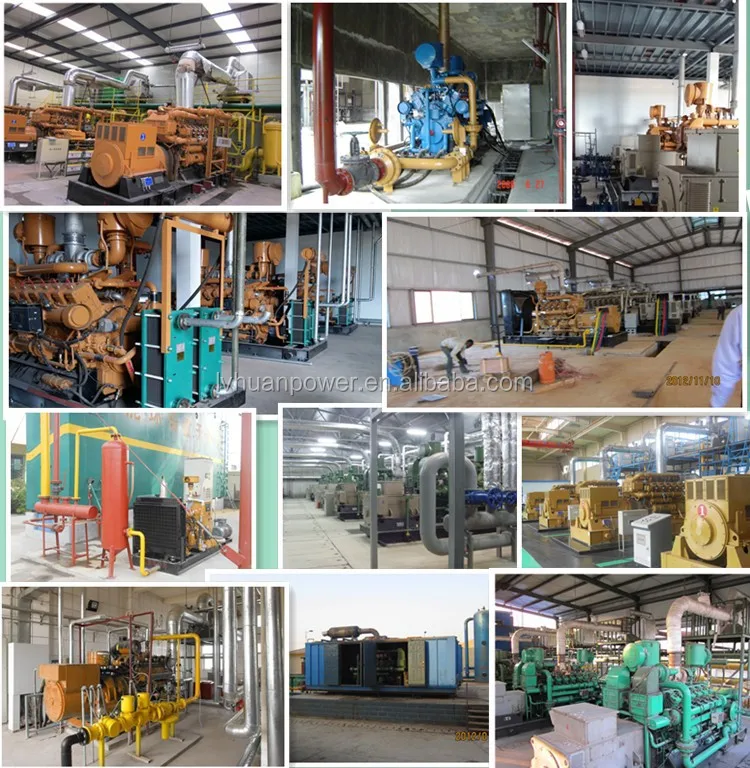

 The pictures of wood gas power plant applied wood gas generator



Company Information

Shandong Lvhuan Power Equipment Co., Ltd is a comprehensive high-tech company which is engaged in the researching, manufacturing and after-sale service of the new energy-saving generator products.

Our main products are gas generator set, diesel engine and diesel generator set.  Our gas generator set includes Biogas generator set, Coal mine generator set, Natural gas generator set, Biomass generator set, Coke oven gas generator set etc.

Our Services

 Service of biomass generator

1. Pre-sale service:

 1) We will send our engineer to prospect the site of power station free of charge.

 2) According to the situation of site, we will provide design drawings, such as power plant floor drawing, cooling system drawing, genset foundation, control room design, etc.



2. Sale service:

1) Operator training would be conducted by our technicians during the process of commissioning or Factory training course in China,

2) Installation and commission of the genset would be instructed assisted by our technicians at site.



3. After-sale service:

1) We have strong after-sale team, we will response within 24 hours and provide technical supports by phone or site guiding, help our clients to gain the biggeset profit.

2) For the quality problem, we will service for you free of charge during the guarantee period.

3) We  provide one year guarantee period and lifetime service.



4. OEM service of  wood gas power plant:

We can provide professional OEM Service for customers.

 1. Unique design and manufacture of generator according to customer’s requirement.

 2. Customer logo printing or painting on the genset.

 3. Installation and Operation manual neutral or headings can be design according to customer’s requirement.

 4.  Full warranty cover to support customers.



Plentiful spare part supply

1. We have spart parts department, plentiful spare part supply for all genset model will guarantee genset lifetime running.

2. All parts were from original factories or professional factories,complete in specification,keep good quality.



FAQ



1. How to choose the right model?

To choose a right model, we need to know required continuous output power, local voltage and frequency and fuel (such as diesel, natural gas, biogas, biomass gas, coal gas, syngas, etc.). For biomass power plant and coal gas power plant, some clients may doesn’t have gasification system, then we need information about raw material.



2. What’s the warranty?

The warranty is one year. We will offer free service and spare parts during warranty period. Lifetime service will be provided by our trustworthy after-sale team.



3. How to do the maintenance?

Operator training will be provided by our technician. After training, local operator can do the basic maintenance by themselves according to our maintenance manual.



4. Will be operation training offered?

Yes, operator training would be conducted by our technicians during the process of commissioning or factory training course in China.



5. What’s about the installation and commissioning?

Installation and commissioning of the genset would be instructed assisted by our technicians on site.
