Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Lvhuan
  • Model Number: LHBMG20-LHBMG600
  • Type: biomass generator
  • exciting method: brushless
  • gas mixing type: outside
  • gas pressure: 3-20 kpa
  • intake mode: natural intake or turbine
  • sparking mode: sparking plug
  • cooling mode: forced closed water cooling
  • overhaul time: >30000h
  • Color: your choice for biomass gas turbine generator
  • Name: lvhuan biomass gasifier generator
  • Fuel: wood chips/straw/palm/rice husk for biomass elctric generator

Packaging & Delivery

Packaging Details with standard export packing for biomass generator/gasifier power plant/biomass gasification generator/rice husk biomass power plant
Delivery Time Shipped in 30 days after payment

CE ISO approved high standard green power 20-1000kw Alternative Energy biomass/Syngas  gas generator/Gas Turbine Generator/1mw Biomass gasification power plant /wood chips/rice husk/wheat straw/biomass pellet/Biomass  Gasifier Generator/Rice Husk Biomass Power Plant





Successful case in the Republic of Congo



https://youtu.be/RBnXZTu2Ul0



Product Description



1. specifications

  • 20-3000kW biomass  generator
  • manufacturer for over eight years
  • With CE and ISO certificates
  • high efficiency
  • Easy Start & Auto start

2.Gas Requirements For Biomass  Generator /Gasification Power Plant

    Within 1m to the intake valve of biomass  generator

  • Gas temperature ≤ 40℃
  •  Pressure 3-20kpa, pressure changing rate ≤ 1kpa/min
  • H2S ≤ 200mg/Nm3
  • NH3 ≤ 20mg/Nm3
  • Tar content≤20mg/Nm3
  • Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
  • Moisture content ≤ 40g/Nm3
  • Heat value4.2MJ/nm3
Product Parameters

 Parameters of the biomass  electric generator / biomass gasifier power plant/biomass  gasifier generator/rice husk biomass power plant

Model Number (Engine Type)LHBMG600
Brand NameLVHUAN
Prime Power/Standby Power400KW/600KW
Rated Speed1000/1200RPM
Rated Frequency50/60Hz
Rated Voltage400V/230V
PhaseAC 3-Phase, 4 wire
Voltage Stability≤±2%
Voltage transient≤±10%
Voltage Stable time≤1s
Heat consumption≤11mj/kw.h
Lubricant Consumption≤1.0g/kw.h
Engine Capacity71.4L
Cylinder Number12-V
Cylinder Bore190mm
Stroke210mm
Starting SystemDC 24V electric motor
Cooling methodwater cooler
Lubricant methodPassive and flying lubricant
Isolation classH
ProtectionIP23
AlternatorSiemens
Power Factor0.8 lagging
Exciting methodbrushless
Colouryour choice
CertificatesISO 9001:2008, CE
Warranty1 year or 1000 running hours which arrives first
TypeOpen
Control systemAutomatic alarm system
Size6200x2100x2800mm
Weight12500kg




Product Pictures

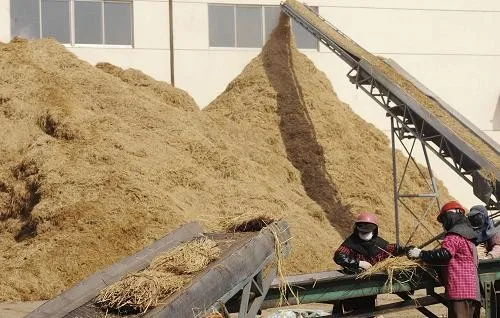

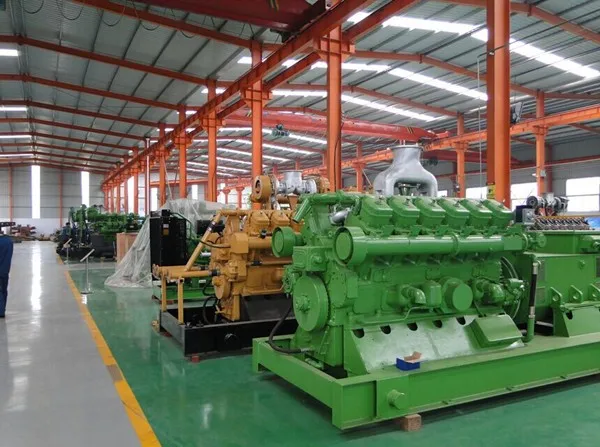

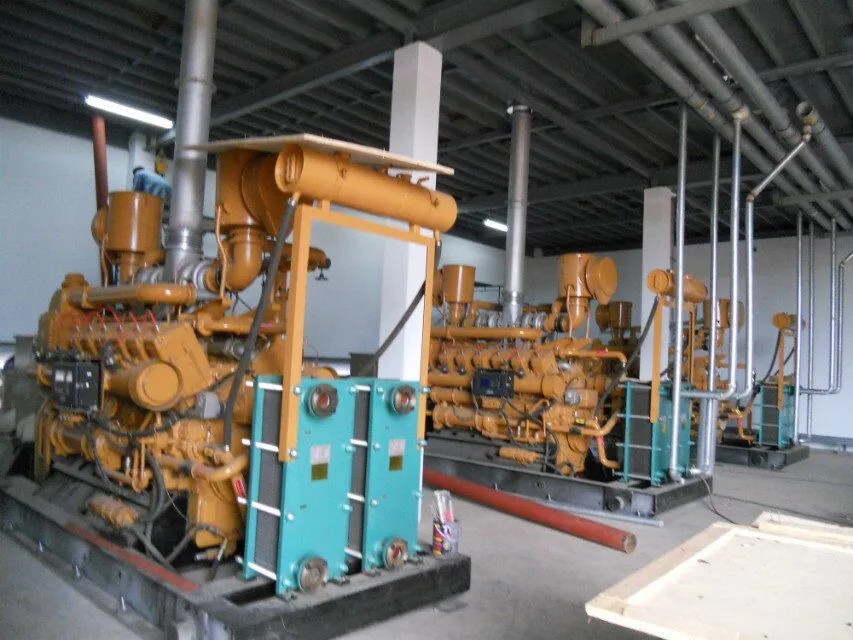

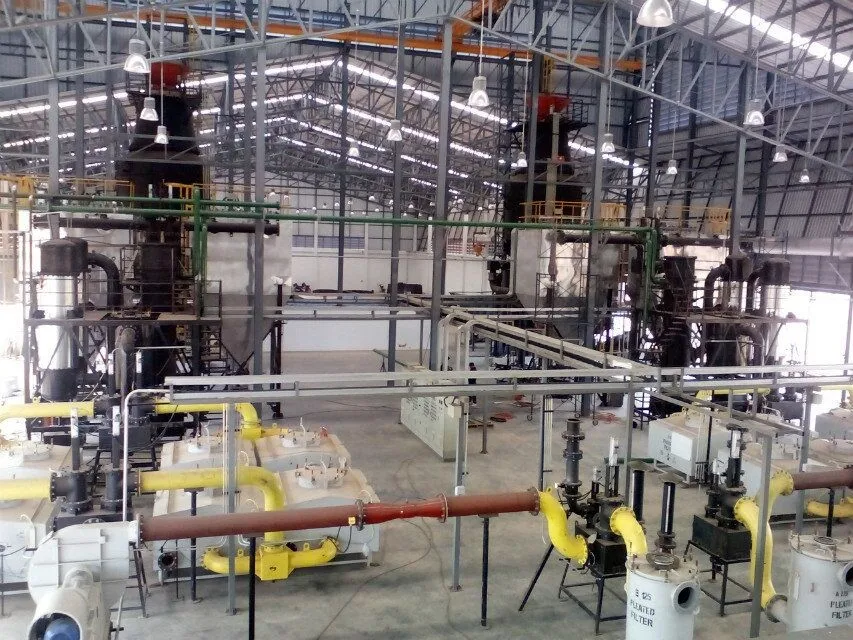

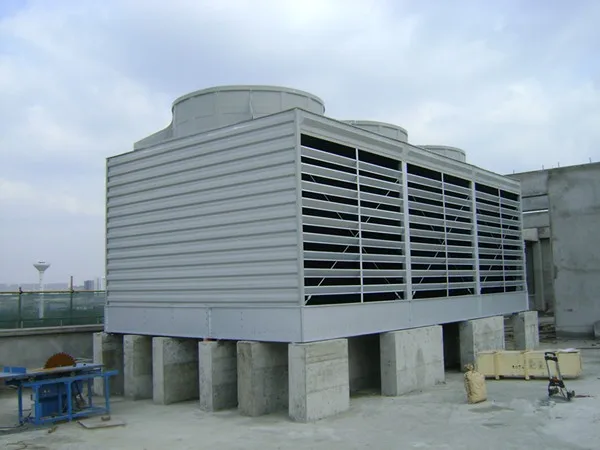

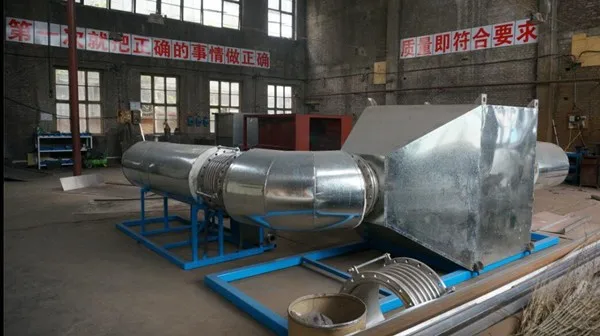

 The pictures of the wood gas generator / biomass  generator / biomass gasification power plant /biomass  gasification generator/rice husk biomass power plant





Company Information



Shandong Lvhuan Power Equipment Co., Ltd is a comprehensive high-tech company which is engaged in the researching, manufacturing and after-sale service of the new energy-saving generator products.

Our main alternative energy products are gas generator set, diesel engine and diesel generator set. It forms series of products, including: Biogas generator set, Coal mine generator set, Natural gas generator set, Biomass generator set, Coke oven gas generator set, Gas generator set, Diesel generator set and the entire building machine.


Our Services

 The service of the wood gas generator / biomass  generator / biomass gasification power plant /biomass  gasification generator/rice husk biomass power plant

1.pre-sale service:

(1)We will send our engineer to prospect the site of power station free to charge.



(2)According to the situation of site we can supply you many drawings:like power station floor plan, engineering

    flow sheet of circle cooling system,genset installation,genset foundation,electrical connection and some other

   techincal support etc.



2.Sale service:

(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative

    equipment.



(2)We will debug the generator set till it can generate power successfully.



(3)We will also supply a technical training to the operators.Orcan send your staff to our company.We can train

    you till you can operate the generator set.



3.After-sale service:

(1)Our every engineers are in charge of different area,we will response periodically and support you technical

    service free of charge,



(2)For the quality problem, we will service for you free of charge during the guarantee period.



(3)One year guarantee period and lifetime service.



(4)we solve quality problem in time when genset doesn’t work,We insure to help our clients to gain the biggest

    economic profit.



FAQ

 Shandong Lvhuan Wood Gas Generator / Biomass  Generator / Biomass Gasification Power Plant /Biomass  Gasification Generator

1.How to choose the right model?



A: It depends on real output power, Voltage, Frequency and gas type.



2.What is the oil consumption and capacity per hour?



A: 1.0-1.63g of lubricant oil consumption per hour. 1.0 Cubic meter gas can produce 1.5-3.0kw/h power. The

capacity depends on gas energy. E.g 1.0 Cubic meter natural gas produce about 3.0kw/h.



3.What is the overhaul?



A: About 30000 working hours. A week is enough to finish.



4. What is the warranty?



A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare  parts are not free. But,

a set of spare parts will be shipped together with machine free.





5. How is the service?



A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
